控制電纜
產品標準
Reference Standards
本產品按照 Q/320282 GAD09-2001 標準制造
This product is manufactured according to enterprise standard Q/320282 GAD09-2001
適用范圍
Application
本產品適用于冶金、電力、石油、化工等工礦企業中在高低溫以及務種惡劣環境中的儀表連接和自動控制系統的信號傳輸。本產品具有極優良的耐高低溫、酸、堿、油、水等及阻燃性能。
This product applies for instruments connection or signal transmission of auto-control systems under higher or lower temperature or in various harsh environment in industrial or mining enterprises of metallurgy , electric power , oil , chemistry and so on , with excellent adventages of high or low temperature-resistant , acid – alkali – oil – and – water – proof , and fire-resisting.
表示方法舉例
Examples

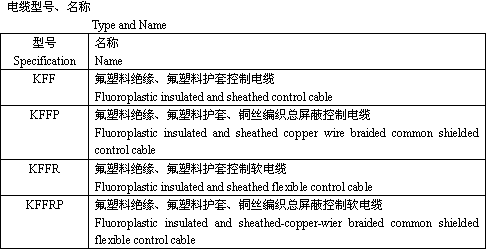

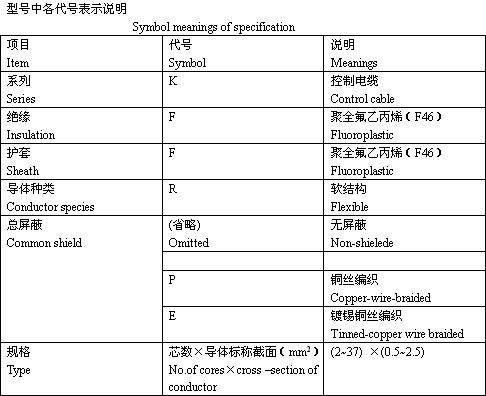

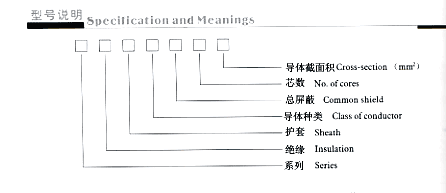

氟塑料絕緣和護套控制電纜由型號、芯數及導體的標稱截面表示。同一品種采用規定的不同導體結構時，較軟導體用( B )表示，在規格后表明。舉例如下：
1. 氟塑料絕緣氟塑料護套控制電纜， 16 芯，導體標稱截面為 2.5 mm 2 ，表示為：
單根導體結構： KFF16 × 2.5
絞合導體結構： KFF16 × 2.5(B)
2. 氟塑料絕緣氟塑料護套編織總屏蔽控制軟電纜， 12 芯，導體標稱截面為 1.0 mm 2 ，表示為：
KFFRP12 × 1.0
The specification of fluoroplastic insulated and sheathed control cable is symbolized by type , core number and cross-section . When two different cables have the same type expression but diffenent conductor species , the cable with more flexible conductor is symbolized by adding “B” behind the type expression . For examples :
1.Fluoroplastic insulated and sheathed control cable with 16 cores and nominal cross-sectional area of conductor 2.5 mm 2 :
For solid conductor :KFF16 × 2.5
For stranded conductor :KFF16 × 2.5(B)
2.Fluoroplastic insulated and sheathed braided common shielded flexible control cable with 12 cores and nominal cross-sectional area of conductor 1.0 mm 2 : KFFRP12 × 1.0
