450/750V及以下塑料絕緣電纜

聚氯乙烯絕緣電線電纜
日期:08-20

  產品標準

  Reference Standards

  本產品按GB5023-1997《額定電壓450/750V及以下聚氯乙烯絕緣電纜》、JB8734-1998《額定電壓450/750V及以下聚氯乙烯絕緣電纜和軟線》標 準生產,同時還可根據用戶需要按國際電工委員會推薦標準IEC、英國標準、德國標準及美國標準生產。

  The product is manufactured according to the standards of GB5023-1997 and JB8734-1998 or IEC,BS,DIN and ICEA upon request.

  適用范圍

  Application

  本產品分別適用于額定電壓450/750V及以下的動力裝置、固定布線及撓性連接電器之用。

  The products is suitable for power installation fixed wiring or flexible connection for electrical appliances with rated voltage up to and including 450/750V respectively.

  使用特性

  Operating characteristics

  ● 額定電壓Uo/U為450/750V、300/500V、300/300V。

  Rated voltage Uo/U:450/750V、300/500V、300/300V。

  ● 電纜導體的允許長期高工作溫度:

  Max.permissible continuous operating temperature of the conductor:

  227 IEC 07(BV-90)…………………………90℃

  227 IEC 08(RV-90)………………………90℃

  其它型號For other types …………………70℃

  ●電纜敷設時環境溫度應不低于0℃

  The ambient temperature under installation shall not below 0℃

  ● 電纜彎曲半徑:The bending radius of cable:

  D≤25mm …………………………………≥4D

  D>25mm …………………………………≥6D

  (D-電纜外徑 Diameter of the cable )

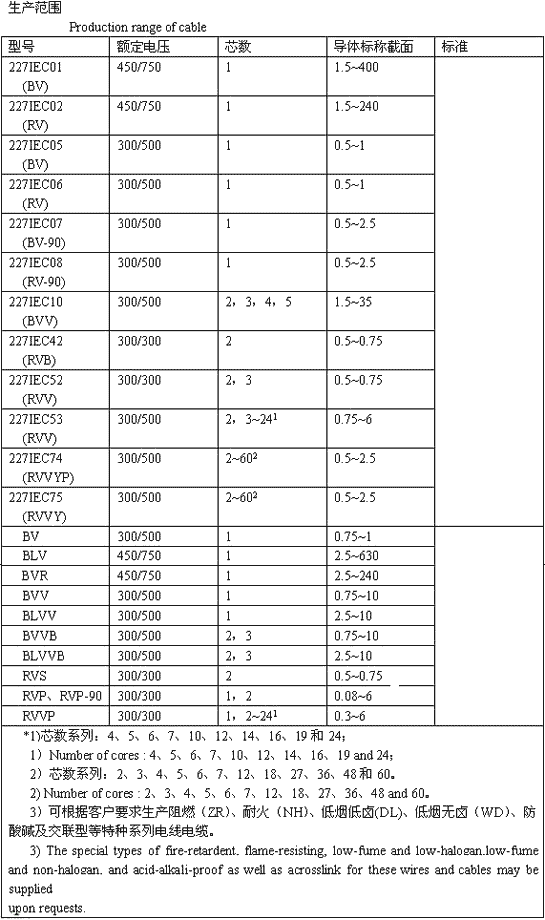

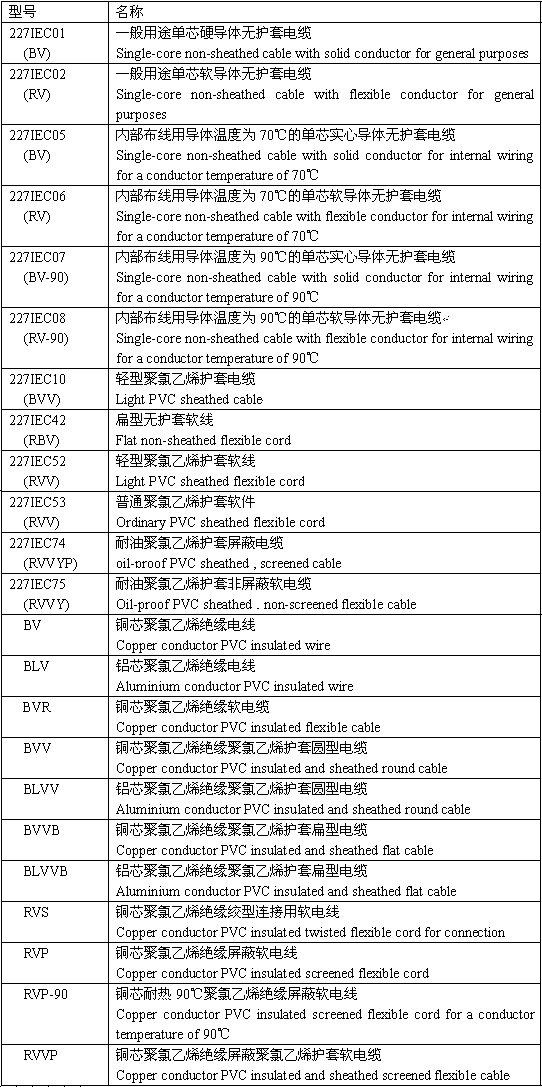

  電纜型號、名稱
